General Description/Why use this product?

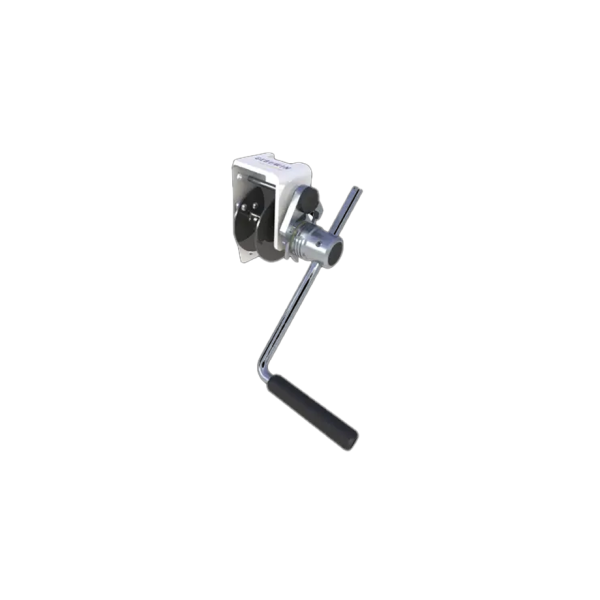

The Gebuwin Spur Gear Hand Winch lends itself to pulling and lifting. This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.
Product Specifications
- Robust and safe lifting and pulling winch in compliance with EN13157
- Static safety factor 4
- Direct transmission for high speed
- Maintenance free bearings
- Load pressure brake with double ratchet system for safe stable hold of the load in any position
- Cable outlet upwards
- Adjustable crank, with ergonomic grip
- Suitable for wall mounting
- Simple and quick attachment
- Paint thickness is 60 - 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M - RAL 7035 (grey)
- Corrosion resistant
Options
- Zinc-plated finish 6 - 8 micron (EV)
- 2 layers of paint according to C3M (2L)
- ATEX certified zone 2 and 22 (EX)
- CE II 3G Ex IIC T4 Gc, -20°C<T amb <+70°C
- CE II 3D Ex IIIC T135°C Dc, -20°C<T amb <+70°C
- Custom options possible - on request
