General Description/Why use this product?

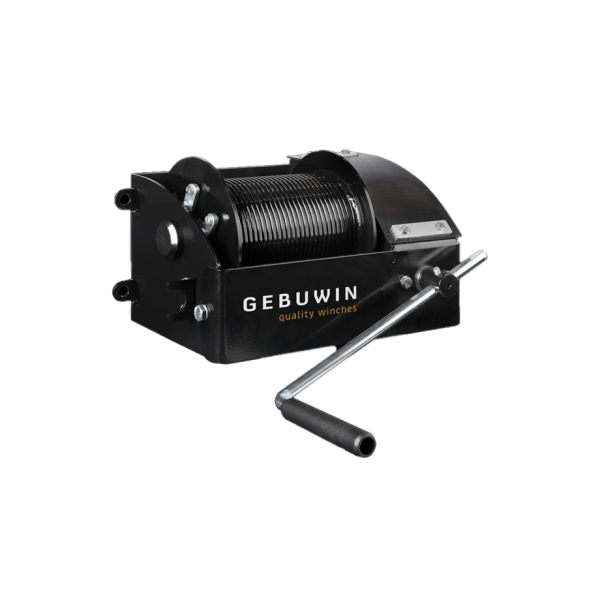

The Gebuwin Electric e-Winch lends itself to pulling and lifting. The powerful three-phase motor allows for heavy lifting despite its size.
Product Specifications
- Compliant to the EN17206 norm for stage and entertainment
industry
- Static safety factor 8
- The worm gear transmission has a natural braking effect
- Closed gearbox to prevent accidents
- Grooved drum for single-layer storage of wire rope
- Two load pressure brakes with double ratchet system for safe stable hold of the load in any position
- Equipped with a spring loaded pressure roller for smooth winding on the drum
- Right angled, easy to grease worm transmission and maintenance free bearings
- Cable outlet upwards and downwards
- Double wire rope fastening for extra safety
- Adjustable and secured crank with ergonomic grip
- Suitable for wall mounting
- Simple and quick attachment
- Paint thickness is 60 - 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M - RAL9005 (black)
Options
- 2 drum compartment (2D)
- Increase of drum to store more rope
