General Description/Why use this product?

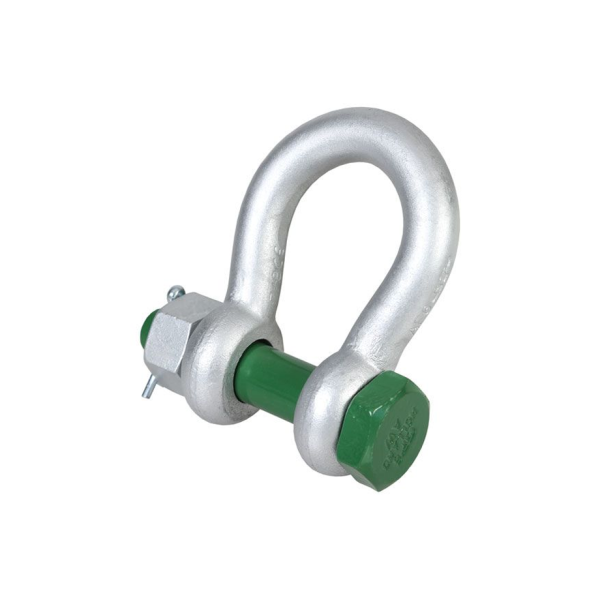

The Green Pin® Standard Bow Shackle with Safety Nut and Bolt Pin is a durable shackle, which offers offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin.
Product Specifications
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
- From 2t and upward these shackles comply with ASME B30.26.
- Minimum breaking load is 6 times the W.L.L.
- Temperature range -40°C up to +200°C.
- Full CAD support available upon request.
- Certification available
