General Description/Why use this product?

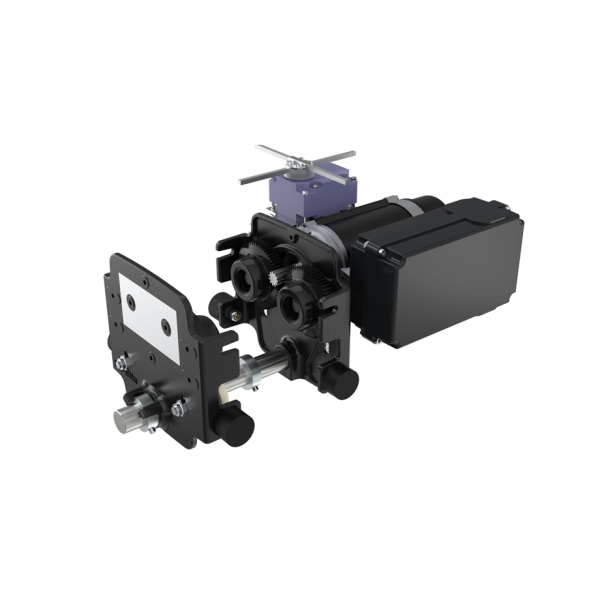

The Verlinde CHVX Electric Variable Speed Travel Trolley lends itself to transporting loads of 63 to 3200 kg. Designed to roll on all profiles type IPN or IPE, HEA or HEB, both straight or curved, the VERLINDE CHVX electric trolley enables a hoist with a top hook or EUROCHAIN VX hoist coupling systems to be hung directly.
Options
- Worm gear box to obtain reduced side dimension (5 or 10 m/min and 10-2.5 m/min).
- Dual travel speed 20 & 5 m/min (contactor control).
- Additional hand chain for hand driven trolley.
- Travelling limit switch with different setting.
- Special power supply, special control voltages.
- Control pendant with 2,5 m cable.
- Additional meter pendant control cable.
- 4-button pendant for hoist to replace standard 2-button pendant.
- Rain cover.
- Counter wheels.
- Counterweights.
