General Description/Why use this product?

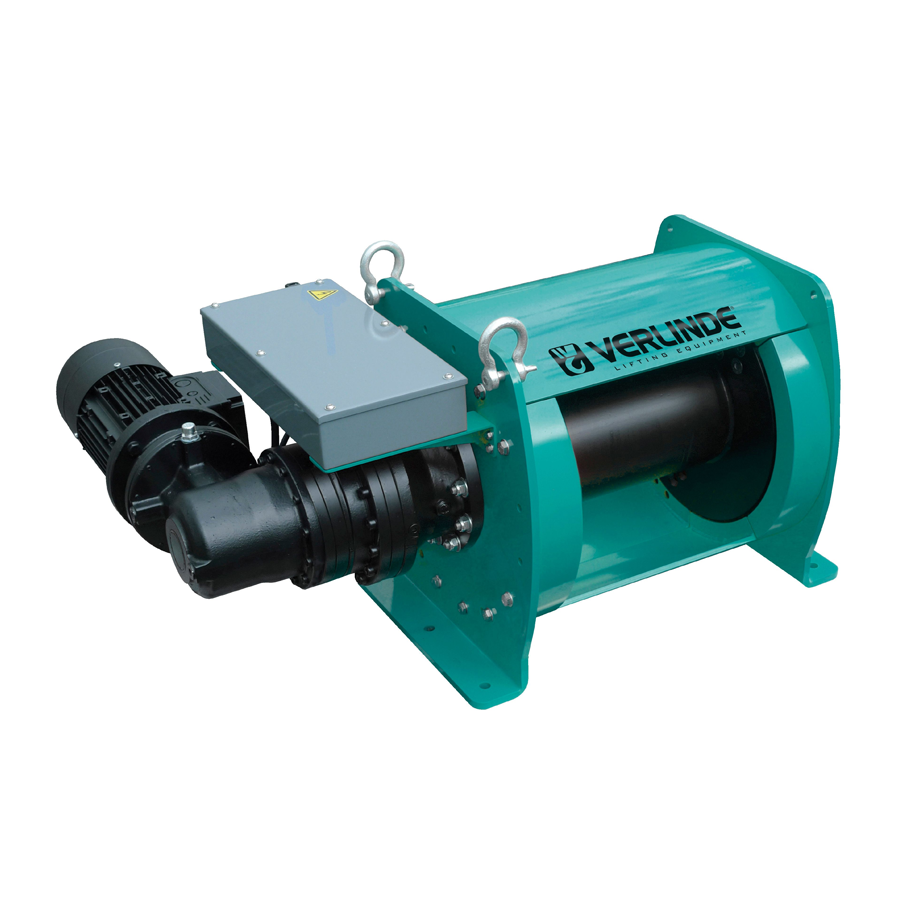

The Verlinde TVI Industrial Electric Winch lends itself to lifting and moving loads of loads from 1000 to 10000 kg. This range of compact TVI winches have been designed for the industrial market. Due to the robustness, the compact dimensions, the wide range of load capacity, the large availability of options, and the diversity of possible attachments, the TVI is perfectly adapted to all standard lifting or pulling/hauling applications.
Product Options
- IP66 limit switches.
- Additional rope fixation.
- Load limiter.
- Grooved drum 1 fixation.
- Grooved drum 2 fixations.
- Brake release.
- Add shaft.
- Drum length modification.
- Drum cover at 3/4 surface.
- Total Drum cover protection.
- Special motor voltage.
- Motor tropicalized.
- IP 56 motor.
- IP 65 motor.
- H class motor.
- Slack rope detection.
- Pressure roller.
- Variable speed.
- Offshore paint.
- Radio remote.
Product Notes
The following options are supplied as standard – Speed (1000kg – 5m/min, 2000kg – 5.5m/min, 3000kg – 3.5m/min, 4000/8000/10000kg – 2.5m/min and 5000/6000/7000/9000kg – 2m/min) and Power Supply (230v). If there are any variations you would like to modify, please fill out a contact form from the CONTACT US page.
