General Description/Why use this product?

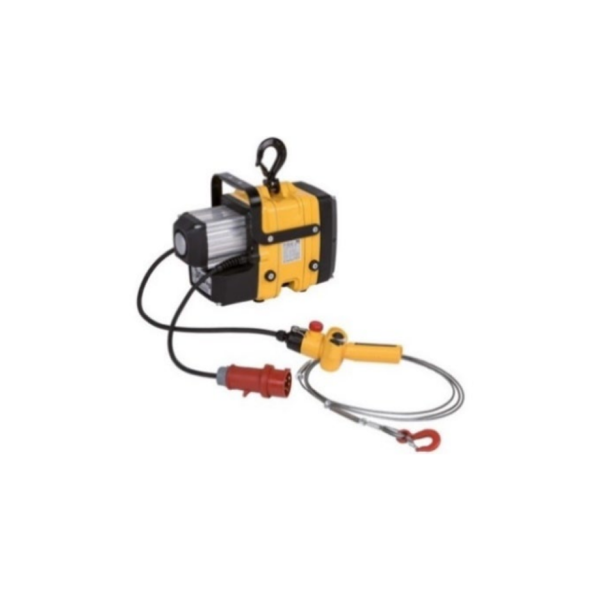

The Yale Mtrac Endless Winch lends itself to the common need for a safe and simple handling solution for mobile applications.
Product Specifications
- Capacities 66kg to 300kg in single-reeved configuration.
- Control Pendant (IP65-type of enclosure) is connected via a control cable.
- Standard power cable has a length of 1.0m and is fitted with a CEE connector plug.
- 42V low-voltage control.
- Ergonomic, fitted carrying handle features a comfortable plastic grip.
- Mounting feet fixed on the housing for easy set up.
- Operating voltages of 400v 3-ph 50Hz or 230v 1-ph, 50Hz.
- Galvanised high density, rotation-resistant steel rope is 10m long (dia 6.5mm) and features a safety hook with a rounded, plastic-coated tip at the loose end.
- Two spring buffers with adjusting rings can be attached to the wire rope to set the limit switches for both upward and downward movement.
